Sourcing Granite Steps and Stair Treads: An Exterior and Interior Specification Guide

Designing commercial entrances and landscape stairways that can withstand high pedestrian traffic and extreme weather cycles demands dense, high-abrasion-resistant materials. Granite steps and stair treads represent the industry standard for durability, offering longevity that far exceeds concrete or precast options. Sourcing these heavy-duty architectural components requires coordinating format selections, edge profiles, structural drainage, and critical slip-resistance safety finishes.

Structural Formats: Solid Block Steps vs. Clad Treads and Risers

Sourcing managers must specify whether a project requires solid block steps or a clad tread-and-riser system. Solid block steps are manufactured as single, monolithic pieces of granite, typically 150 mm to 180 mm thick and 300 mm to 350 mm deep. These solid stones are extremely heavy, with a single 1.5-meter step weighing approximately 150 kg to 200 kg. Solid steps are preferred for grand exterior public entrances and landscape steps, as their mass ensures stability and they do not contain joints that could fail under frost. Installation requires heavy machinery or crane assists.

Clad tread-and-riser systems consist of relatively thin granite slabs installed over a concrete or masonry substructure. The stair tread (typically 30 mm to 50 mm thick) is laid horizontally on the concrete step, while the riser (typically 20 mm thick) is installed vertically to cover the front face. This system is lighter, more economical, and highly suited for interior stairs and budget-conscious exterior renovations. The trade-off involves joint maintenance; the mortar or sealant joints between the tread and riser can deteriorate over time, allowing water to penetrate and cause efflorescence or freeze-thaw cracking.

Critical Slip-Resistance Specifications for Exterior Stairs

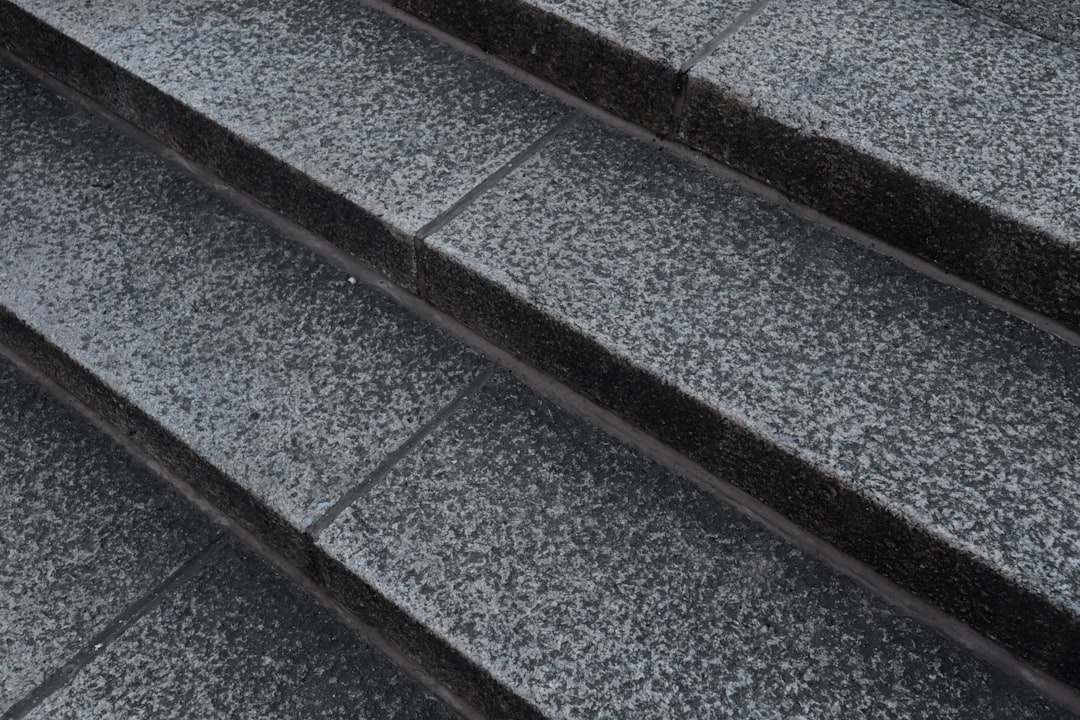

Selecting the correct surface finish is the single most critical safety specification for exterior granite steps. High-gloss polished finishes become slick and dangerous when wet, presenting a severe liability hazard. Exterior steps must be specified with a flamed (thermal), bush-hammered, or sandblasted finish. The flamed finish is achieved by exposing the stone face to a high-temperature torch, causing the quartz crystals to expand and pop, leaving a rough, slip-resistant texture. A bush-hammered finish uses a pneumatic hammer to create a pitted, uniform non-slip texture.

For high-traffic public transit stairs or commercial office entries, architects can specify an integrated anti-slip nosing strip. This strip consists of a 50 mm wide sandblasted or grooved band running along the front edge of the tread. The strip provides visual contrast for visually impaired pedestrians and increases traction where the foot makes initial contact. For interior stairs, honed finishes are acceptable, providing a smooth face that is slip-safe under dry conditions.

Dimensions, Nosing Profiles, and Structural Drainage

Architects must specify three key dimensions for stair treads: the going (tread depth, typically 300 to 350 mm), the rise (height, typically 150 to 180 mm), and the run (length). The thickness of clad treads should be at least 30 mm for interior stairs and 40 mm to 50 mm for exterior public stairs to withstand impact loads. The front edge of the tread should feature a finished nosing profile. Common profiles include a square eased edge, a half-bullnose, or a full-bullnose. The nosing should overhang the riser by 15 mm to 25 mm to direct water away from the vertical joint.

Structural drainage is essential for exterior granite steps to prevent ice accumulation. Exterior treads must be installed with a slight forward slope (typically a 1% to 2% grade, or approximately 3 mm of drop per 300 mm of tread depth). This slope ensures that rainwater drains off the step nose immediately instead of pooling on the tread. If water pools on the surface, it creates a slip hazard in summer and freezes into black ice in winter, while also penetrating the mortar bed and leading to adhesive failure.

B2B Sourcing Parameters: Color Matching and Heavy Transport

Sourcing granite steps from manufacturing hubs involves specific B2B logistics. Sourcing managers can choose from grey, black, and pink granites. For public works, grey granites (such as G603 or G654) are standard due to their high availability and low cost. Because steps are heavy, shipping costs represent a large percentage of the total procurement budget. Sourcing in full container loads (maximum weight limit typically 20 to 22 tonnes) is required to optimize ocean freight. Slabs and solid blocks must be packed flat on heavy wooden skids, separated by foam strips, and secured with steel strapping and wood braces to prevent sliding in transit (FOB Xiamen).

The minimum order quantity for custom steps is typically 50 to 100 linear meters. Quality control checks must verify that all edge profiling, flamed finishing, and anti-slip groove milling are completed at the factory. Site-flaming or manual edge profiling is expensive and yields inconsistent textures. Sourcing managers must inspect the finished steps for dimensional accuracy, ensuring length and thickness tolerances do not exceed ±2 mm.

What is the recommended slip-resistance finish for outdoor steps?

Exterior granite steps must be specified with a flamed (thermal), bush-hammered, or sandblasted finish. Polished finishes are prohibited for outdoor stairs because they become slick and hazardous when wet. Honed finishes are only suitable for dry interior stairs.

What is the difference between solid block steps and clad stair treads?

Solid block steps are thick, monolithic stone pieces that serve as the entire step structure, offering high durability and stability. Clad treads are thin granite slabs (30-50 mm) installed over a concrete or masonry base, providing a lighter and more economical solution.

Why must outdoor granite steps be installed with a slope?

Outdoor steps must be installed with a slight forward slope of 1% to 2% (about 3 mm drop) to ensure water drains off the step. Without this slope, water will pool on the tread, creating a slip hazard in rain and freezing into black ice in winter.

What is the transport weight limit for importing granite steps?

B2B shipping containers are limited by road weight regulations, typically allowing a maximum cargo weight of 20 to 22 tonnes. Because solid granite steps are heavy, a single container can only hold approximately 100 to 120 linear meters of solid block steps.

Verify that the factory-milled anti-slip nosing strips match the architectural details before crating; if the drawings specify a 5 cm sandblasted strip, require visual confirmation photos of the batch to prevent costly field rework.
