Exterior granite paving requires mechanical surface processing to create micro-textured profiles that deliver reliable slip resistance under wet, icy, or high-traffic conditions. Smooth, polished, or honed granite becomes dangerously slick when exposed to rain, whereas thermal flamed finishes and mechanical bush-hammered processing alter the stone surface to achieve R11 to R13 slip resistance ratings without compromising structural freeze-thaw durability.
Mechanical Surface Processing: Flamed vs. Bush-Hammered Finishes
Granite consists of quartz, feldspar, and mica minerals bound in an igneous matrix. Raw sawn granite slabs require thermal or mechanical texturing before exterior installation:
Flamed (Thermal Finish)
Flamed granite is produced by passing a high-temperature oxy-propane flame torch (reaching over 1,100 degrees Celsius) across water-dampened sawn stone slabs. The intense thermal shock causes quartz and feldspar crystals near the surface to fracture and spall off.

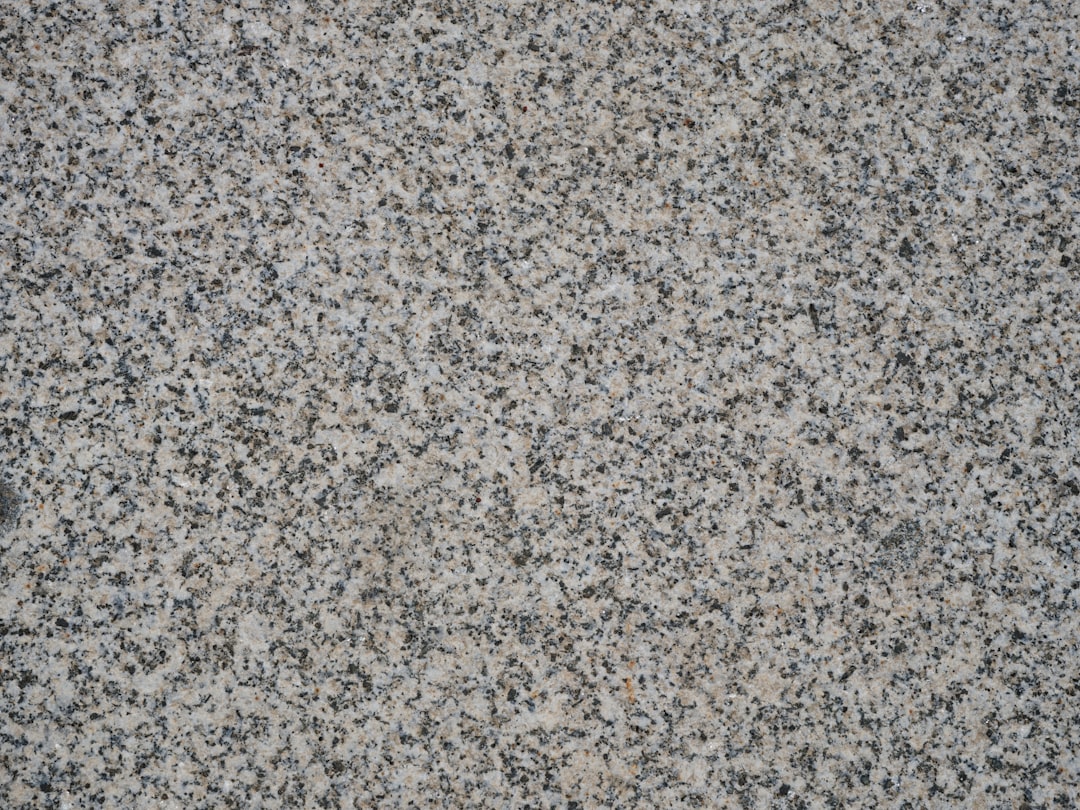

This process leaves a rough, natural-looking cratered surface with exposed mineral facets. Flamed finishes lighten the natural background color of the granite slightly and produce a rustic, non-directional anti-slip texture.
Bush-Hammered (Abujardado) Finish
Bush-hammered granite is manufactured using pneumatic or hydraulic heads fitted with rows of pyramid-shaped carbide teeth. These mechanical hammers strike the sawn slab surface repeatedly, pulverizing small pits into the stone.
The resulting surface features a uniform, stippled texture resembling natural weathered sandstone. In Spanish-speaking markets, this finish is widely specified as abujardado. The impact depth can be adjusted from fine (1mm pits) to coarse (3mm–5mm pits) depending on friction requirements.
Flamed and Brushed Combination
For high-end pedestrian plazas, specifiers often request a flamed-and-brushed finish. After thermal flaming, the slab passes under rotary diamond-impregnated nylon brushes. This process smooths out sharp micro-edges while preserving anti-slip ridges, creating a comfortable surface for barefoot pool decks and upscale commercial walkways.
Why Granite Dominates Exterior Hardscape Applications
While limestone, sandstone, and travertine are used in residential landscaping, natural granite paving dominates municipal plazas, streetscapes, and transit hubs:
- Low Water Absorption: Commercial paving granite maintains water absorption rates below 0.3%, preventing subterranean moisture from triggering frost heave or spalling during freeze-thaw cycles.
- Compressive and Flexural Strength: Hardscape granite exhibits high compressive strength, enabling 50mm to 80mm thick pavers to support heavy municipal vehicles and delivery trucks without cracking.
- Abrasion and De-Icing Salt Resistance: Igneous granite resists surface erosion from continuous pedestrian footfall, snow plows, and calcium chloride de-icing chemicals that erode calcitic limestones.
Sub-Base Structural Requirements and Drainage Joint Engineering
The longevity of exterior granite paving relies as much on sub-grade preparation as on stone quality:
Rigid Mortar Bed vs. Flexible Sand Bed Installations
- Rigid Concrete Slab Setting: High-traffic commercial plazas require a reinforced concrete base slab topped with a 30mm to 40mm semi-dry cementitious bedding mortar. Pavers are slurry-bonded to the mortar bed to prevent unit shifting under heavy brake shear forces.
- Flexible Aggregate Setting: Pedestrian garden paths and permeable municipal walkways frequently utilize a 30mm crushed stone aggregate bedding layer over compacted gravel. Flexible settings absorb mild ground movement and allow water infiltration.
Drainage Joint Specifications
Proper joint spacing prevents pavers from spalling along edges under lateral thermal expansion. Sawn-edge pavers require 5mm to 8mm joint widths filled with polymer sand or exterior epoxy grout. Wide-format slabs must incorporate stainless steel expansion joints every 6 meters across concrete substrates.
Dimensional Standards, Edge Details, and Thickness Guidelines
Specifying exterior paving requires aligning slab thickness with sub-base design and vehicular load categories:
Thickness Categories
- 30mm Thickness: Suitable for pedestrian-only walkways, residential patios, covered walkways, and building entrance plazas supported by concrete slabs or pedestal systems.
- 50mm Thickness: Standard specification for light commercial pedestrian plazas, retail arcades, and emergency vehicle access routes set on compacted sand-gravel beds.
- 80mm to 100mm Thickness: Required for heavy municipal traffic, bus lanes, loading docks, and public streetscapes subject to continuous vehicular axle loads.
Edge Finishing Options
- Sawn Edges: Clean, machine-cut 90-degree edges allow narrow 3mm to 5mm mortar or sand joints, ideal for modern urban plazas.
- Chiseled / Split Edges: Hand-pitched perimeter edges create a rustic cobble appearance suitable for historic restoration projects.
- Beveled / Chamfered Edges: A 3mm to 5mm top perimeter bevel prevents edge spalling when pavers undergo slight thermal expansion or vehicular shear force.
Format Sizing Realities
Standard exterior paver sizes include 300x300mm, 400x400mm, 600x300mm, and 600x600mm. Large-format paving slabs (such as 900x600mm or 1200x600mm in 50mm thickness) require mechanical vacuum lifting equipment on site due to individual unit weights exceeding 70 kilograms. When sourcing large-volume landscaping stone contracts, verifying crate weight limits with shipping lines is critical to avoid port weight penalties.
Sourcing Risks, Color Variance, and Quality Control
Procurement managers must address specific supply chain risks inherent to textured exterior granite:
Iron Inclusion Rusting
Certain granite deposits contain iron pyrite or biotite inclusions that remain invisible on sawn slabs. When exposed to outdoor rain and air, these iron particles oxidize, creating reddish-brown rust stains on light grey or white pavers. Quality inspection protocols require verifying that quarry blocks originate from low-iron geological strata.
Surface Dusting and Initial Spall Shedding
Freshly flamed granite slabs retain loose micro-fractured quartz dust within surface craters. If installed without high-pressure water washing, this dust layer prevents mortar bonding and sheds micro-particles under foot traffic. Importers should specify factory pressure washing prior to wooden crate packaging.
Tone Alteration Across Finishes
Mechanical texturing changes the optical reflectivity of granite. A dark grey granite that appears deep charcoal when polished will shift to a medium light grey when flamed or bush-hammered. If a project specifies polished wall cladding alongside flamed ground paving from the same granite quarry, procurement teams must request physical samples of both finishes to verify acceptable tone contrast.
Slip Resistance Testing and Certification
Claiming anti-slip performance verbally is insufficient for commercial public works. B2B buyers should require pendulum friction test certificates (such as BS 7976-2 or ASTM C1028) from supplier testing labs, verifying a Pendulum Test Value (PTV) above 36 in wet conditions (equivalent to R11 or higher).
Technical Specifications Matrix
- Primary Anti-Slip Finishes: Thermal Flamed, Bush-Hammered (Abujardado), Flamed & Brushed.
- Slip Resistance Rating Range: R11 to R13 (PTV > 36 Wet).
- Water Absorption Rate: < 0.3% by weight (ASTM C97).
- Flexural Strength: > 12 MPa (ASTM C880).
- Standard Paver Thicknesses: 30mm (Pedestrian), 50mm (Light Vehicle), 80mm–100mm (Heavy Freight).
- Density: ~2,650 to 2,800 kg/m³.
Frequently Asked Questions
Which is better for outdoor pool decks: flamed or bush-hammered granite?
Flamed-and-brushed granite is preferred for barefoot pool decks. Standard flamed granite can feature sharp quartz edges that feel harsh on bare feet, whereas bush-hammered or flamed-and-brushed surfaces provide smooth micro-stippling that maintains high wet friction without skin irritation.
Does flamed granite require sealing in exterior public plazas?
In most public municipal paving applications, sealing flamed granite is unnecessary due to granite's low porosity and high weather resistance. However, for outdoor dining areas, hotel drop-off zones, or food truck plazas, applying a breathable penetrating oil-and-water repellent sealer prevents engine oil and food grease staining.
Why does flamed granite look lighter in color than polished granite from the same quarry?
Flamed processing fractures surface crystals, creating millions of micro-facets that scatter ambient light in all directions. Polished surfaces allow light to penetrate deeply into the mineral matrix, revealing rich dark pigments. The lighter shade of flamed granite is an optical light-scattering effect, not a mineral change.
What is the main cause of cracking in 30mm exterior granite paving?
Cracking in 30mm paving is almost always caused by inadequate sub-base compaction, voids in the mortar bedding layer, or subjecting 30mm pedestrian-rated slabs to heavy vehicular loads. Ensuring 100% mortar bed coverage eliminates air pockets that cause shear fractures under load.
