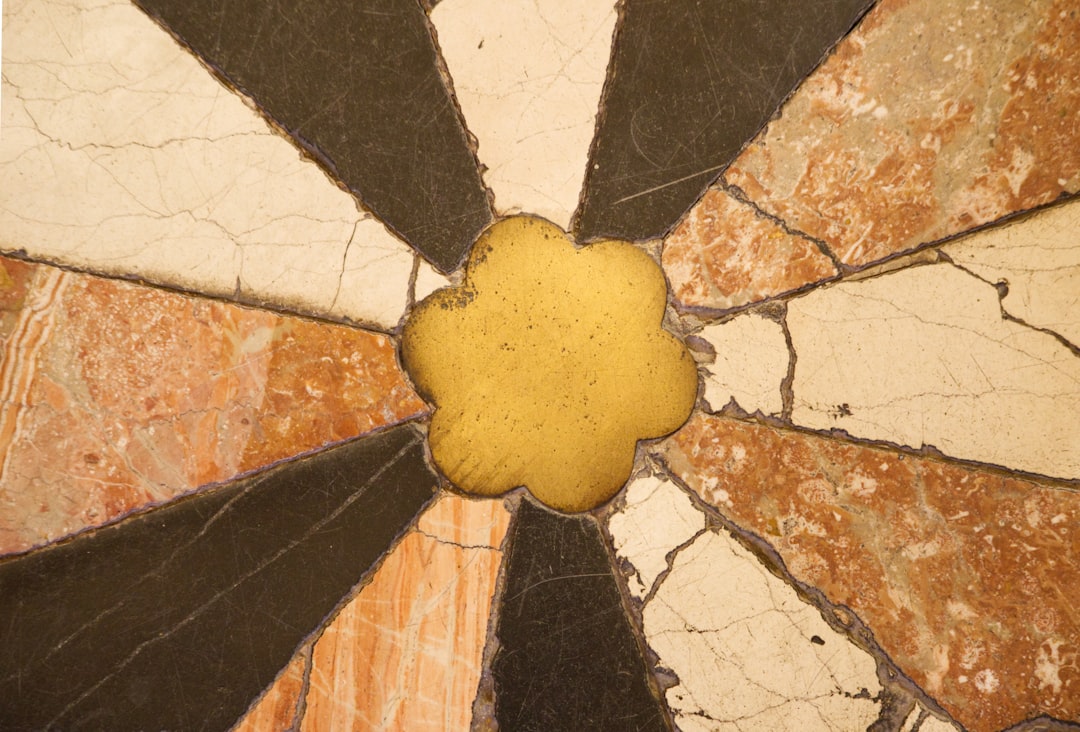

A waterjet stone floor medallion is a multi-color decorative centerpiece precision-cut using CNC waterjet technology, featuring tight micro-joints, fiberglass mesh backings, and calibrated slab thickness matching surrounding floor tiles.

Craftsmanship and Technology of CNC Waterjet Floor Inlays

A waterjet floor medallion (also referred to as a stone rosone, floor emblem, or decorative marble inlay) represents the pinnacle of computerized stone craftsmanship.

Unlike traditional hand-cut mosaic tiles, modern waterjet medallions are manufactured using high-pressure CNC (Computer Numerical Control) waterjet cutting machinery operating at water pressures exceeding 50,000 PSI with garnet abrasive media.

This technology allows stone fabricators to execute intricate architectural designs across multi-colored natural stone slabs with extraordinary precision:

  • Cutting Tolerance Precision: CNC waterjets cut natural stone with tolerances tighter than 0.1mm, enabling intricate filigree, crest logos, and geometric scrollwork.
  • Micro-Grout Joint Assembly: Individual cut stone pieces fit together with seamless 0.5mm to 1mm micro-joints, creating a smooth visual surface.
  • Multi-Stone Color Contrast: Medallions combine contrasting natural stones—such as white Carrara marble, dark Nero Marquina, imperial gold marble, and green onyx accents—into a unified centerpiece layout.

Material Selection and Hardness Matching

Designing and sourcing stone floor medallions requires balancing visual color contrast against mineral physical properties:

Primary Calcite Marble Matrix

Fine-grained natural marble slabs serve as the primary material matrix for waterjet floor medallions. Marble's consistent crystalline structure allows fine waterjet cutting without edge chipping. Specifiers select contrasting light, dark, and warm marble varieties to build visual depth.

Translucent Onyx and Exotic Quartzite Accents

For high-end hotel lobbies and luxury residence foyers, designers incorporate accent pieces of translucent onyx or colorful quartzite slabs. Illuminated foyer designs can even backlight onyx centerpieces to create glowing entry features.

Matching Mohs Hardness Across Inlay Pieces

Specifiers must ensure that all natural stones selected within a floor medallion possess similar Mohs hardness ratings (typically 3 to 4 for marble blends). Mixing soft calcites with ultra-hard quartzites within the same floor medallion causes uneven surface wear under heavy foot traffic over time.

Specification Reality: Thickness Calibration, Diameter, and Delivery

Procurement managers sourcing custom waterjet medallions must enforce strict manufacturing specifications prior to factory crating:

1. Calibrated Thickness Matching Surrounding Field Flooring

A critical technical requirement for floor medallions is thickness calibration. If surrounding lobby floor tiles are 20mm thick, the waterjet medallion must be factory-calibrated to exactly 20mm thickness (+/- 0.5mm). If the medallion is thinner or thicker than field tiles, a dangerous tripping lip forms across the floor.

2. Diameter Sizing and Geometric Proportions

Waterjet medallions are produced in standard circular or square sizes ranging from 900mm, 1200mm, and 1500mm up to expansive 3000mm+ multi-segment lobby centerpieces. Designers frequently frame circular medallions with matching multi-stone waterjet border strips to tie the centerpiece into perimeter room walls.

3. Factory Mesh-Mounted Assembly and Dry-Lay Testing

Quality waterjet medallions are fully assembled at the factory, glued onto alkali-resistant fiberglass mesh backing, and numbered in logical quadrant sections. Fabricators must perform a complete factory dry-lay inspection, photographing the assembled medallion for buyer approval before packing into reinforced timber crates.

Vector Artwork Translation and Kerf Compensation Engineering

Translating architectural concept sketches into factory-ready waterjet cut paths involves sophisticated shop software engineering:

  • CAD Vector Translation: Architects provide DWG or DXF vector files detailing medallion patterns. Factory engineers optimize line paths to eliminate micro-gaps and sharp inner stress corners that could crack fragile marble pieces.
  • Waterjet Kerf Compensation: The waterjet stream possesses a finite cutting beam width (kerf) of approximately 0.75mm to 1.0mm. CNC software automatically calculates kerf offset paths so that male and female stone inlay pieces assemble with zero clearance binding.

Custom Branding, Corporate Logo Inlays, and Metallic Accents

For corporate headquarters, luxury retail flagship stores, and casino rotundas, waterjet technology enables custom brand integration:

  • Custom Logo and Emblem Translation: Corporate logos, family crests, and nautical compass roses can be translated directly into multi-stone inlays.
  • Brass and Stainless Steel Dividers: Modern medallion designs frequently incorporate 3mm thick waterjet-cut brass or stainless steel metal strips, forming reflective accent outlines around stone elements.

Field Grouting and Monolithic Diamond Polishing

Installing waterjet floor medallions requires specialized jobsite finishing:

  • Resin Micro-Grouting: After setting the mesh-mounted medallion into mortar, installers squeegee color-matched polyester or epoxy liquid resin into the 0.5mm micro-joints, completely sealing joint lines.
  • Monolithic Diamond Honing: Once joint resin cures, masons grind the entire floor area with rotary diamond honing discs, creating a continuous 100% flat floor plane across the medallion and field tiles.

Export Packaging and Quadrant Crating Standards

Transporting fragile, complex waterjet medallions across ocean freight routes requires specialized timber crating:

  • CNC-Cut Foam Cradles: Medallions are packed inside reinforced timber cases lined with high-density expanded polyethylene foam custom-molded to fit medallion quadrant shapes.
  • Quadrant Section Marking: Large medallions are divided into quadrant sections (A1, A2, B1, B2) with clear alignment pins, allowing site masons to unpack and assemble large 3-meter medallions with zero jobsite layout confusion. Crating waterjet medallions with custom CNC-cut foam padding and quadrant section marking ensures zero transit damage during ocean shipping and allows field masons to unpack and assemble multi-piece medallions quickly.

Integration with Decorative Flooring Layouts

Waterjet floor medallions serve as architectural anchors that coordinate with broader floor patterns:

  • Entrance Foyer Focal Points: Positioned at the exact geometric center of hotel lobbies or corporate entrance rotundas to establish immediate brand luxury.
  • Coordinating with Patterned Flooring: Medallions pair exceptionally well with surrounding herringbone, chevron, or parquet stone floors, with waterjet border strips creating a clean transition line between the centerpiece and patterned field tiles.

Procurement Pitfalls in Waterjet Medallion Sourcing

  • Thickness Discrepancies: Receiving an un-calibrated 15mm medallion for installation alongside 20mm field marble tiles creates expensive site grinding or subfloor buildup labor.
  • Loose Un-Assembled Piece Delivery: Importing cheap waterjet medallions shipped as loose, un-mounted puzzle pieces causes massive installation delays and high jobsite labor costs.
  • Un-Sealed Calcite Inlays in High-Traffic Foyers: Failing to apply penetrating sealer over marble floor medallions before handover results in dirt ground into micro-seams under heavy shoe traffic.

Technical Specifications Summary

  • Manufacturing Technology: High-Pressure CNC Waterjet Cutting (0.1mm Tolerance).
  • Primary Materials: Multi-Color Natural Marble Slabs, Accent Onyx, Quartzite.
  • Joint Seam Width: 0.5mm to 1.0mm Micro-Grout Joints.
  • Standard Thickness Calibration: 15mm, 20mm, or 30mm (+/- 0.5mm to match field tiles).
  • Delivery Format: Assembled Quadrants on Fiberglass Mesh Backing in Timber Crates.

Frequently Asked Questions

How are custom waterjet stone medallions manufactured?

Custom stone medallions are manufactured using CNC waterjet machines that cut intricate CAD vector designs out of different colored stone slabs at high water pressure. The individual cut pieces are hand-assembled and glued onto fiberglass mesh backing.

How is a waterjet medallion installed flush with surrounding floor tiles?

To achieve a flush installation, the medallion must be factory-calibrated to the exact same thickness (such as 20mm) as the surrounding field floor tiles. Installers embed the mesh-mounted medallion into the same thinset mortar bed as adjacent tiles.

Which natural stones are best suited for waterjet floor medallions?

Fine-grained natural marbles (such as Carrara White, Nero Marquina, and Crema Marfil) are best suited for floor medallions due to their rich color range, smooth cutting characteristics, and consistent Mohs hardness.

Do waterjet floor medallions require special sealer maintenance?

Yes. Floor medallions contain multiple natural stones and micro-grout joints. Applying a high-performance penetrating fluoropolymer sealer protects marble pieces from foot traffic staining and prevents dirt from accumulating in micro-joints.
