Herringbone stone flooring features rectangular tile strips laid at 90-degree angles with butt-joint ends, Chevron flooring utilizes parallelogram strips cut at 45-degree mitered angles to form continuous V-shaped point-to-point lines, and Parquet or Versailles patterns combine modular mixed-size geometric blocks into intricate repeating floor grids.

Pattern Definitions and Geometrical Distinctions

Specifying decorative stone flooring patterns requires understanding the precise geometric differences between the three primary pattern families:

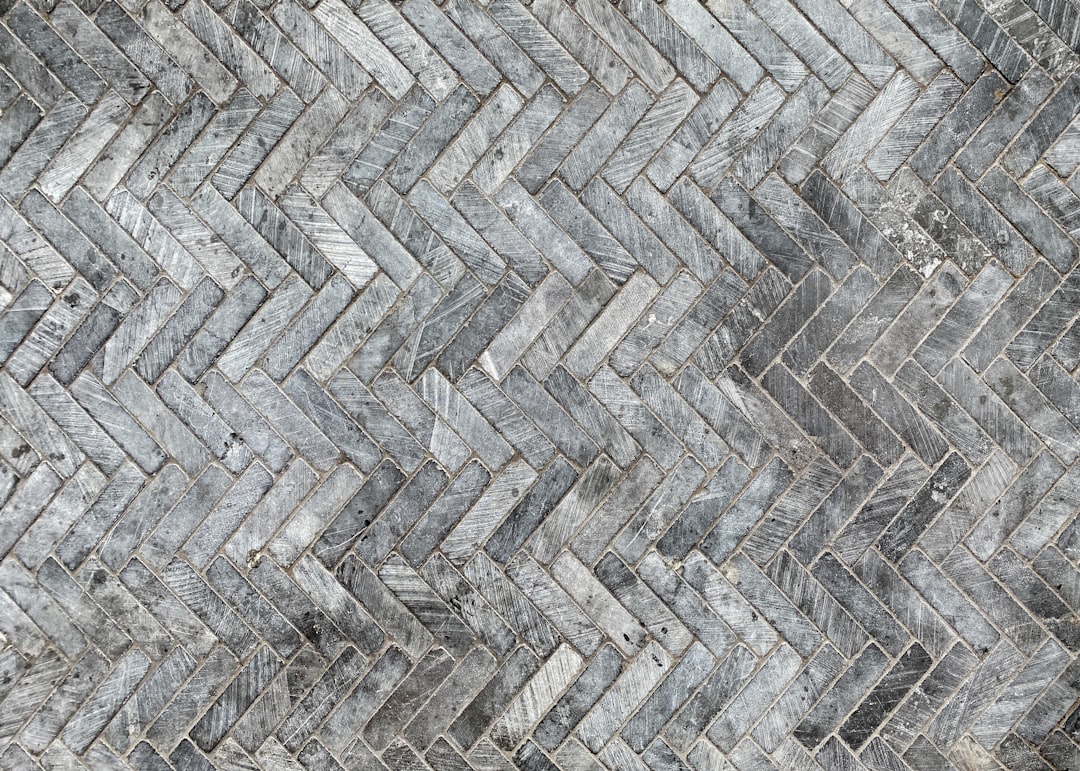

1. Herringbone Pattern

Herringbone is constructed using standard rectangular stone strips (such as 75x300mm or 100x400mm). The short end of one tile abuts the long side of the adjacent tile at a strict 90-degree angle. Because the tiles are standard rectangles without angle cuts, herringbone achieves a staggered, woven visual effect while generating lower material cutting waste.

2. Chevron Pattern

Chevron patterns feature parallelogram-shaped stone tiles cut with mitered ends—typically at 45-degree or 60-degree angles. When installed, opposing mitered ends meet tip-to-tip along a central axis, creating a continuous V-shaped zig-zag line.

Cutting every tile strip into a precise parallelogram requires specialized factory waterjet or multi-blade saws, which increases raw material cutting waste and overall fabrication costs.

3. Parquet and Versailles Patterns

Parquet stone flooring arranges square and rectangular stone tiles into modular geometric panels (such as French Versailles patterns combining 200x200mm, 200x400mm, 400x400mm, and 400x600mm tiles). These modular sets create a classic, multi-dimensional floor layout widely specified for luxury hotel lobbies and residential foyers.

Material Selection and Managing Directional Veining

Natural stone selection directly impacts the visual success of patterned floor installations:

  • Calcite Marble and Limestone: White Carrara, Crema Marfil, and honed limestone tiles are the primary choices for patterned stone floors. Their fine mineral grain allows clean diamond sawing without edge chipping.
  • Travertine Tiles: Natural travertine tiles offer rich warm tones for herringbone and parquet layouts. Specifiers must order factory resin-filled tiles to ensure surface voids do not collect dirt within narrow pattern joints.
  • Managing Directional Veining: Veined stones (such as Calacatta or Vein-Cut Travertine) require strict factory sorting. If veining trajectories run randomly across adjacent chevron strips, the floor creates visual clutter. Fabricators should mark directional arrows on tile backs during factory dry-lay staging to guide field installers.

Dimensional Tolerances, Micro-Bevels, and Waste Yield Logic

Patterned stone layouts demand tighter dimensional tolerances than standard square tile grids:

Strict Length-to-Width Ratio Tolerances

In herringbone and chevron layouts, any cumulative dimensional variance in strip length or width causes pattern drift. A length tolerance error of just 0.5mm will accumulate over a 5-meter room run, pushing grout joints out of alignment. Tile strips must be factory-calibrated with length/width tolerances within +/- 0.5mm and right-angle squareness within 0.2mm.

Micro-Beveled Edges

Specifying a 1mm eased micro-bevel on all four top edges of each strip prevents "lippage"—minor height variations between adjacent tile edges that catch foot traffic and shoe heels.

Pattern Waste Calculation Benchmarks

B2B buyers purchasing marble tiles for patterned flooring must calculate freight orders based on pattern-specific waste factors rather than net floor area:

  • Standard Straight Grid Flooring: 8% to 10% waste allowance.
  • Herringbone Flooring: 15% to 20% waste allowance due to diagonal border trimming.
  • Chevron Flooring: 20% to 30% waste allowance required for factory miter cuts and perimeter angled borders.

Subfloor Preparation and Moisture Primer Systems

Achieving long-term stability under patterned stone flooring requires rigorous subfloor preparation:

  • Subfloor Flatness Standards: Subfloors must meet an elevation tolerance of 3mm over a 3-meter span. Any floor dip or hump twists mitered chevron joints, creating wide, unsightly grout gaps.
  • Self-Leveling Underlayment: Installers should pour a fiber-reinforced self-leveling underlayment over concrete slabs before laying intricate stone patterns.
  • Moisture Vapor Barrier Primers: Ground-slab installations require an epoxy moisture vapor barrier primer to prevent moisture vapor transmission from forcing alkali salts through tile joints.

Perimeter Border Transitions and Expansion Joint Detailing

Integrating decorative patterned floors into larger architectural spaces requires careful perimeter framing:

  • Perimeter Framing Borders: Patterned fields should be framed by a continuous 100mm or 150mm wide solid stone border strip. Framing the room perimeter eliminates tedious, jagged tile cuts along baseboards and accommodates minor wall non-squareness. Fabricating solid stone framing borders reduces waste during initial slab sawing and protects vulnerable tile corners along high-traffic room thresholds. Specifying pre-beveled border strips ensures a flush transition between patterned field areas and adjacent wall baseboards.
  • Doorway Threshold Transitions: Where herringbone or chevron floors meet adjoining rooms, masons should install a flat, beveled stone saddle or threshold strip, creating a clean visual boundary between pattern directional shifts.
  • Movement Expansion Joints: In large commercial rooms exceeding 6 meters in length, flexible silicone expansion joints matching the grout color must be placed along perimeter borders to absorb structural floor movement and thermal expansion.

Field Installation, Layout Baselines, and Grout Selection

Achieving a flawless patterned floor requires disciplined site execution:

  1. Centerline Layout Establishing: Installers must snap intersecting perpendicular chalk lines through the exact optical center of the room. The initial pattern V-ridge or herringbone spine must align precisely with the primary entrance doorway view corridor.
  2. Grout Color Strategy: Selecting a grout color matching the stone ground creates a seamless, subtle textured surface. Using a high-contrast grout emphasizes every geometric joint line, which requires flawless tile alignment and pristine edge cuts.

Export Packaging, Carton Labelling, and Sequence Mapping

Protecting delicate stone tile strips during ocean transport requires heavy-duty export packaging:

  • Corrugated Carton Packing: Tile strips are packed in heavy-duty 5-ply corrugated boxes lined with foam sheeting to prevent transit abrasion between tile faces.
  • Sequential Box Labelling: Boxes are stamped with directional arrows and sequential layout numbers matching factory dry-lay shop drawings, enabling field installation crews to lay out pre-sorted veining patterns efficiently without jobsite sorting delays.

Procurement Pitfalls in Patterned Stone Sourcing

  • Ordering Net Area Without Pattern Waste: Quoting chevron flooring based on net room square meters results in severe material shortages during perimeter diagonal trimming.
  • Ignoring Strip Calibrated Thickness: Mixing tile strips from different factory production lots introduces thickness variations, requiring extra setting bed labor to achieve a flat floor.
  • Un-Sorted Color Tones: Failing to require factory dry-lay photo approval leads to patchy color banding across the installed herringbone layout.

Technical Specifications Summary

  • Primary Pattern Types: Herringbone (90° Butt Joint), Chevron (45°/60° Mitered Joint), Parquet/Versailles (Modular Set).
  • Dimensional Strip Tolerances: Length/Width +/- 0.5mm; Thickness +/- 0.5mm; Squareness 0.2mm.
  • Recommended Grout Joint Width: 1.5mm to 2.5mm with epoxy or polymer-modified grout.
  • Pattern Waste Allowances: 15%–20% (Herringbone); 20%–30% (Chevron).
  • Edge Finish Detail: 1mm eased top micro-bevel.

Frequently Asked Questions

What is the main difference between herringbone and chevron stone floors?

Herringbone tiles are standard rectangles joined at 90-degree angles with straight ends. Chevron tiles are parallelograms cut at 45-degree or 60-degree mitered angles that meet tip-to-tip to create continuous V-shaped lines.

How much extra stone waste should be ordered for a chevron floor?

Order 20% to 30% extra material above net floor square meters for chevron layouts to account for factory miter cutting losses and diagonal perimeter wall trimming.

Can large-format stone slabs be used for herringbone flooring?

Large stone strips (such as 150x600mm) can be used for herringbone floors in expansive commercial spaces. However, larger strips require perfectly flat subfloors to prevent tile lippage at 90-degree intersections.

Why is factory dry-lay sorting essential for veined marble chevron floors?

Factory dry-lay sorting ensures that natural veining trajectories align harmoniously across mitered V-joints before packing, preventing erratic visual breaks across the installed floor.
