Specifying Ashlar Pattern Stone Walling and Flooring: Layout Systems and Procurement Ratios

Designing horizontal surfaces and vertical facades with dimensional variety requires a clear understanding of masonry coursing systems. Unlike standard linear tiling, executing an ashlar pattern involves laying dressed, rectangular stone blocks of varying heights and lengths to create a structured yet organic surface. Sourcing stone for this layout requires precise coordination of size ratios, calibration, and waste calculations to ensure the installation proceeds without material shortages.

Defining Ashlar Coursing: Linear vs. Random Layouts

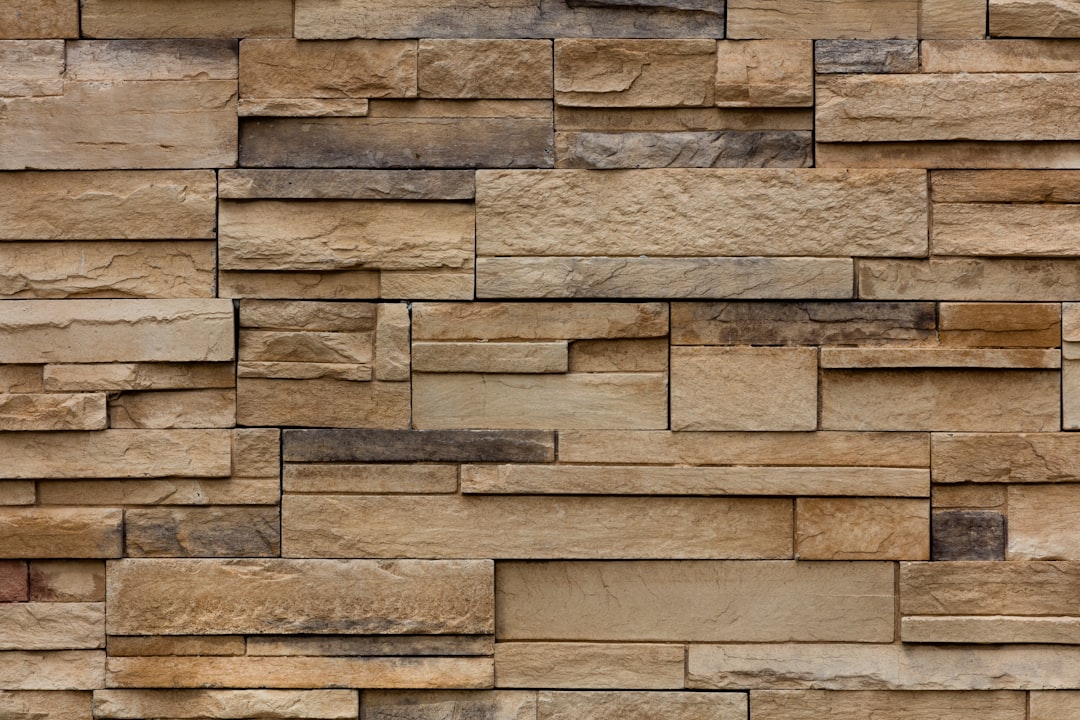

Ashlar masonry refers to finely worked, square-cut stones laid with tight joints, contrasting with the irregular shapes of rubble walling. Within ashlar coursing, there are two primary layout approaches: coursed and random. Coursed ashlar features rectangular blocks of uniform height laid in continuous horizontal rows. Random ashlar, also known as broken ashlar, uses blocks of three or more heights and various lengths. The installer arranges these pieces to prevent continuous horizontal or vertical joints, resulting in a traditional, staggered aesthetic. Limestones such as Portuguese Moca Cream or Classic Beige and travertines are the most common stones selected for this pattern, as their soft textures and warm beige tones complement the shadows cast by the deep-set joints.

In modern interior applications, factories supply pre-sorted "ashlar tile pattern" sets, often referred to as Versailles or Opus patterns. These sets contain a specific mathematical ratio of sizes—typically four distinct dimensions packaged together in a modular grid. For example, a standard set might contain 20x20 cm, 20x40 cm, 40x40 cm, and 40x60 cm tiles. Because the pattern relies on a precise interlocking layout, a shortage of any single size will halt the entire installation. Procurement officers must confirm that the factory packs the correct piece count ratio in every crate.

Thickness Calibration and Joint Width Engineering

Dimensional tolerances are critical when specifying stone for ashlar patterns. Standard floor tiles require a tight calibration tolerance of ±1 mm to ensure a flat, lip-free surface when using thin-bed adhesive. For exterior wall cladding dry-hang systems, thickness tolerances can be wider (typically ±3 mm), but the stone must be thick enough (typically 25 mm to 40 mm) to accommodate anchoring pin holes. Crema Marfil and Tundra Grey marbles are frequently calibrated for interior floors, while Moca Cream limestone is preferred for exterior facades due to its thermal properties.

Joint width is another crucial factor. Ashlar patterns should never be laid butt-jointed. A minimum joint width of 3 to 5 mm must be specified. This joint accommodates minor dimensional variances in the stone and allows the building to settle without cracking the tile edges. For outdoor installations, using a flexible, polymer-modified grout prevents moisture from penetrating the joints and causing efflorescence or freeze-thaw spalling behind the stone facade.

Estimating Quantities, Dry-Lay Inspections, and Waste Calculations

Procuring stone for an ashlar layout requires adjusting standard waste factors. While a straight tiling project typically requires a 5% to 10% waste allowance for cuts, a random ashlar pattern requires a 12% to 15% allowance. This higher rate is due to the frequent cuts required at the perimeter edges, corners, and openings to maintain the random pattern without repeating joints. Sourcing from quarries in Greece, Italy, or Turkey means that re-ordering a small batch to cover a shortage will result in color differences, making initial quantity accuracy critical.

Dry-lay inspection is a mandatory quality control step. Prior to installation, the contractor must dry-lay tiles from multiple crates across a flat surface. This process allows the installer to mix the natural color variations of the stone (such as Classic Beige's tonal shifts or travertine's void density) and verify that the layout reads as a balanced, random pattern. It also ensures that the modular sizes align correctly before any adhesive is applied, avoiding costly tear-outs.

What is the difference between ashlar and rubble masonry?

Ashlar masonry uses square-cut, dressed stones with flat faces that permit thin (3 to 5 mm) joint lines. Rubble masonry uses irregular, un-cut stones with wide, uneven joints. Due to CNC cutting and dressing, ashlar has higher production costs.

Why is a dry-lay inspection necessary for ashlar tile patterns?

Dry-laying tiles from multiple crates before installation distributes natural color variations and veining evenly. This prevents visual clustering of similar shades and allows the installer to verify thickness calibration and grid layout before applying adhesive.

What is the typical waste allowance for random ashlar layouts?

Random ashlar requires a 12% to 15% waste allowance. This is higher than linear tiling due to the frequent cutting needed at boundaries and openings to maintain the layout. Sourcing this extra volume upfront prevents shade-matching issues later.

Which stone varieties are best suited for ashlar facades?

Portuguese Moca Cream and Classic Beige limestones, plus Roman travertine, are ideal for cladding due to their ease of cutting and consistent beige tones. For high-traffic floors, calibrated Crema Marfil or Tundra Grey marbles are preferred.

Batch calibration must be verified at the factory before shipping; if the thickness tolerance exceeds ±1 mm for interior flooring tiles, require double-calibration processing to prevent floor lippage during installation.
